Nom Voltage(V) 12
Nom Capacity (AH) 20/10/5hr rate 26/26/22.1
Weight 20.96 (9528kg)
Length 6.54" (166mm)
Width 6.89" (175mm)
Height 4.92" (125mm)
Terminal Height 4.92" (125mm)

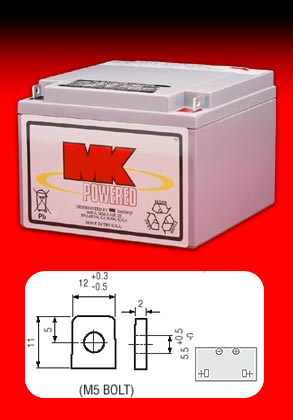

Terminal Type / Position F3 / 10
Max discharge current (A) 5 sec 130
Ambient Temp Charge 32°F - 104°F
Discharge -4°F - 122°F
Storage -4°F - 104°F
Max Charge Current 7.8
Replaces:
- APC AP1200 (EP28-12B1)
- APC AP1200VS (EP28-12B1)
- APC AP1200VX (EP28-12B1)
