Nom Voltage(V) 12
Nom Capacity (AH) 20/10/5hr rate 45/45/38.25
Weight 31.04 (14109kg)
Length 7.79" (198mm)
Width 6.54" (166mm)
Height 6.73" (171mm)
Terminal Height 6.73" (171mm)

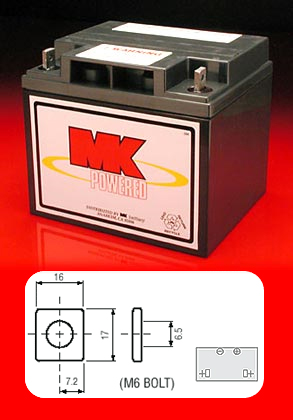

Terminal Type / Position F4 / 10
Max discharge current (A) 5 sec 225
Ambient Temp Charge 32°F - 104°F
Discharge -4°F - 122°F
Storage -4°F - 104°F
Max Charge Current 13.5
