Nom Voltage(V) 6
Nom Capacity (AH) 20/10/5hr rate 12/12/10.2
Weight 4.97 (2254)
Length 5.94" (151mm)
Width 1.97" (50mm)
Height 3.70" (94mm)
Terminal Height 3.90" (99mm)

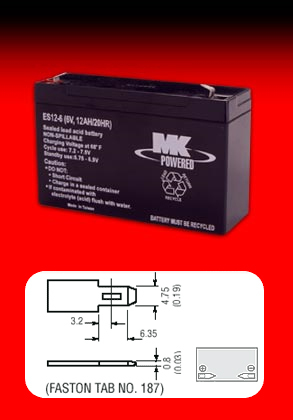

Terminal Type / Position F1 / 2
Max discharge current (A) 5 sec 60
Ambient Temp Charge 32°F - 104°F
Discharge -4°F - 122°F
Storage -4°F - 104°F
Max Charge Current 3.6
Replaces:
- APC 450AT (BP12-6)
- APC 450AT+ (BP12-6)
- APC 520ES (BP12-6)
- APC 550ES (BP12-6)
- APC AP450 (BP12-6)
- APC AP520 (BP12-6)
- APC AP800 (BP12-6)
- APC AP800RT (BP12-6)
- APC PC Net (BP12-6)
- BackUPS 450 (BP12-6)
- BackUPS 520 (BP12-6)
- BackUPS 575C (BP12-6)
- BackUPS 600 (BP12-6)
- BackUPS 600C (BP12-6)
- BackUPS 650 - 2 battery version (BP12-6)
- BackUPS 900 (BP12-6)
- BackUPS BK450 (BP12-6)
- BackUPS BK575C (BP12-6)
- BackUPS BK600 (BP12-6)
- BackUPS BK600C (BP12-6)
- BackUPS BK800 (BP12-6)
- BackUPS BK900 (BP12-6)
- SmartUPS 900 (BP12-6)
- SmartUPS SU900 (BP12-6)
